Description

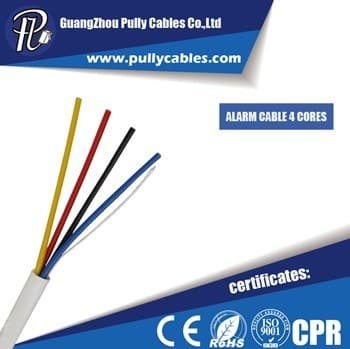

4 CORES UNSHIELDED ALARM CABLE
Alarm Cable is generally used in security industry and wire various components, such as passive door sensors and motion detectors to alarm panel.
| Conductor | TC/BC/CCA |
| Conductor Dia. | 0.2mm² Solid or 0.22mm²Stranded |
| Insulation | PVC/PE/HDPE |
| Insulation Dia | 0.25mm |
| Jacket | PVC |
| Cores | 2/4/6/8/10/12/16/20 |
0.2mm² Solid
| 0.22mm² Stranded
|
| Cores/Nominal | Insulation Tickness | O.D(mm) | Cores/Nominal | Insulation Tickness | O.D(mm) |
| 2×1/0.5mm | 0.25mm | 3.4±0.2mm | 2×7/0.2 | 0.25mm | 3.4±0.2mm |
| 4×1/0.5mm | 0.25mm | 4.0±0.2mm | 4×7/0.2 | 0.25mm | 4.0±0.2mm |
| 6×1/0.5mm | 0.25mm | 4.5±0.2mm | 6×7/0.2 | 0.25mm | 4.5±0.2mm |
| 8×1/0.5mm | 0.25mm | 5.2±0.2mm | 8×7/0.2 | 0.25mm | 5.2±0.2mm |
| 10×1/0.5mm | 0.25mm | 5.6±0.2mm | 10×7/0.2 | 0.25mm | 5.6±0.2mm |
| 12×1/0.5mm | 0.25mm | 6.4±0.2mm | 12×7/0.2 | 0.25mm | 6.4±0.2mm |
| 16×1/0.5mm | 0.25mm | 7.2±0.2mm | 16×7/0.2 | 0.25mm | 7.2±0.2mm |
| 20×1/0.5mm | 0.25mm | 8.2±0.2mm | 20×7/0.2 | 0.25mm | 8.2±0.2mm |
| ELECTRICAL CHARACTERISTICS： |
| Maximum Conductor Resistance | < 100 Ω/km |
| Voltage Rating | 50 V |
| Current Rating | 1.0 amp |
| Min.Bend Radius | 7.5 x OD |
| Temperature Rating | 0°C to 70°C |
